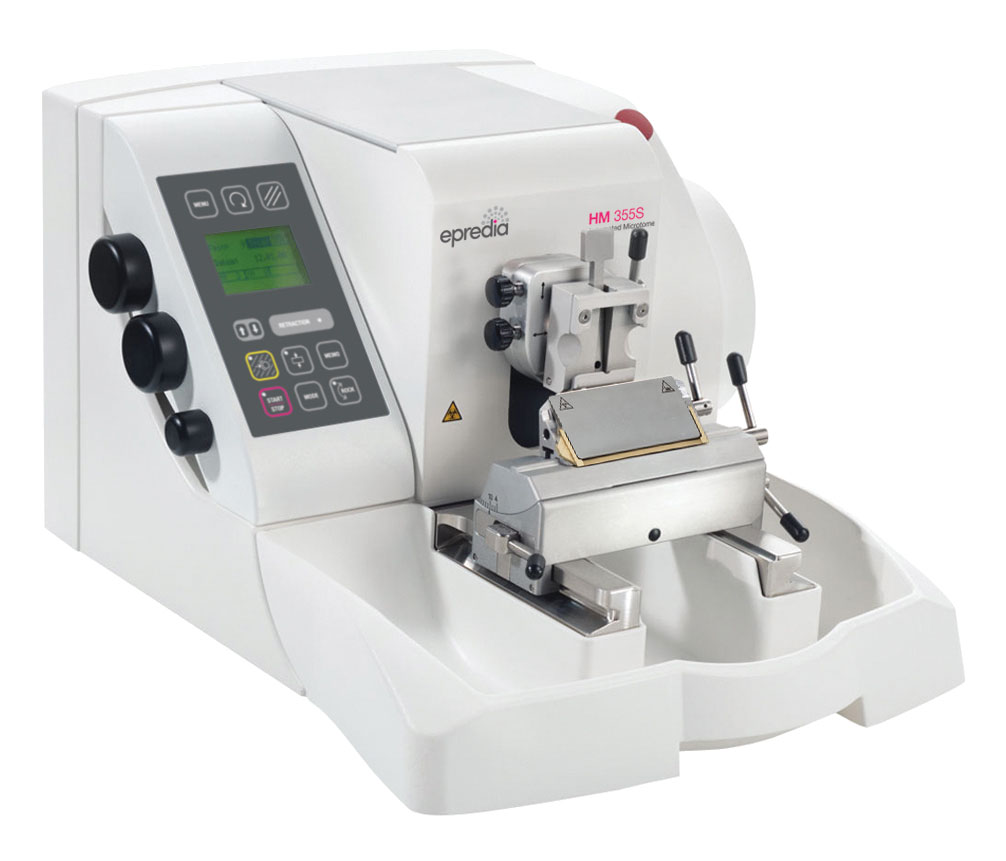

HM 355S

Epredia|SKU: 905200ER

A fully automated microtome with four mechanized cutting modes to deliver exceptional sections across an extensive range of specimen types. Choice of manual or mechanized sectioning. Single, multiple, interval and continuous cutting modes for optimum control according to sectioning requirements. Unique "double-tap" startup and emergency stop features enhance user safety.

주요 특징

Menu-driven control panel can be used on either side of instrument
Display monitors a range of functions including cutting speed, section count, section thickness, and advance distance
Four cutting modes of operation (single, interval, multi and continuous)
User-selected cutting window control maximizes throughput by allowing the return stroke to be faster than the optimized cutting stroke
Manual and/or foot pedal control
Double tap start activates sectioning motor
One-handed zero-orientation head
Joy-stick control specimen advance and rewind

견적 요청

Section safely with excellent quality. Microtomes from Epredia are designed to be precise and stable, helping to yield superior sectioning results for even the most difficult-to-cut paraffin sections.

Features

Menu-driven control panel can be used on either side of instrument
Display monitors a range of functions including cutting speed, section count, section thickness, and advance distance
Four cutting modes of operation (single, interval, multi and continuous)
User-selected cutting window control maximizes throughput by allowing the return stroke to be faster than the optimized cutting stroke
Manual and/or foot pedal control
Double tap start activates sectioning motor
One-handed zero-orientation head
Joy-stick control specimen advance and rewind
Emergency stop immediately cuts power to the motor
Five languages available for viewing commands
Large, easy-to-clean waste tray extends below the blade holder

Advantages

Excellent for routine paraffin sections and plastic-embedded specimens
High-quality sections with less fatigue
Unmatched safety, ease-of-use, reliability, and consistency of results
Instant switch between trim and section settings with independently selectable trim and section speeds
Rock option: specimen head advances by a set amount to trim specimens without turning the hand wheel through full turns
Selectable retraction feature
Guide-rail guidance

Specifications

Cutting stroke: 72 mm
Total specimen advance: 28 mm
Maximum sectioning speed: 400 mm/s
Section thickness range: 0.5–100 μm
Trim thickness range: 5–500 μm
Retraction range: 40 μm
Section counter: Standard
Dimensions (D × W × H): 20.5 × 16 × 11 in. (52 × 41 × 28 cm)
Weight: 77 lb. (35 kg)

Includes

Standard tools
Brushed aluminum cover plate
Dust cover
Instruction manual
905200 includes microtome only
905200A includes microtome, universal cassette clamp (715020S) and disposable blade carrier E (705800)
905200ER includes microtome, universal cassette clamp (715020S) and disposable blade carrier ER (705830)
