ClearVue

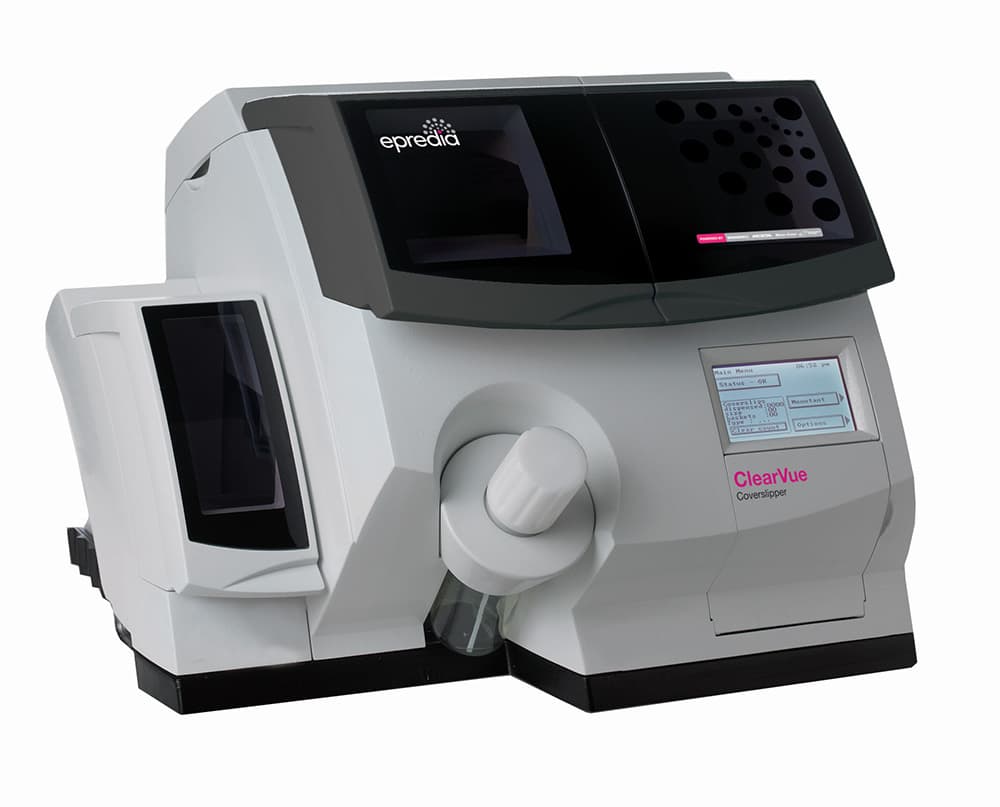

Simply place a basket of slides onto the load rail and close the door – the ClearVue™ coverslipper does the rest.

Delivering speed and accuracy to complete the coverslipping workload for the busiest of laboratories, the ClearVue coverslipper accepts pre-loaded coverslip hoppers to deliver a clean, single coverslip consistently every time.

Compatibility

  • Offers compatibility with a variety of stainers to accommodate just about any lab setting
  • Accepts slides directly from the Epredia™ Varistain™ Gemini ES and Varistain™ 24-4, Sakura™ DRS2000 and Leica™ Auto-Stainer
  • Permits loading of slide baskets from any of these stainers in a mix-or-match fashion without requiring operator adjustments to the coverslipper

Specimen Recognition

  • Automatically recognizes different types of slide preparations and delivers the correct amount of mountant for coverslipping each
  • Handles both histology and cytology samples simultaneously without user interaction while still delivering right amount of mountant

Load-on-Demand

  • Handles up to 11 slide baskets at the same time with load-on-demand capabilities
  • Accepts baskets loaded one at a time or up to five baskets loaded together

Optical Recognition

  • Possesses the unique ability to optically recognize and position slides during the coverslipping process
  • Recognizes the position of each slide in a basket, removes each slide with a set of slide-grippers and returns every slide back, while maintaining slide positioning

User Interface

  • Intuitive user interface features a touchscreen panel
  • Software monitors the type of slide preparation, size and number of slips dispensed and the number of baskets waiting to be coverslipped

Safety Features

  • System is not operational when any of its doors are open, preventing mechanical mishaps
  • Downdraft ventilation protects the user when loading and unloading slide baskets
  • Charcoal filter removes any vapors before they can escape the unit
  • Removable debris and purge trays make cleanup a breeze
